Products
三腳架
►Flowtech 75mm/100mm 碗座雙節輕型碳纖維三腳架
►Pozi-Loc Tripods 75mm/100mm/150mm 碗座三腳架
►HDT-1單節和HDT-2雙節重型三腳架
►Oconnor電視/電影攝影機30L/60L Cine HD三腳架。
商品介紹

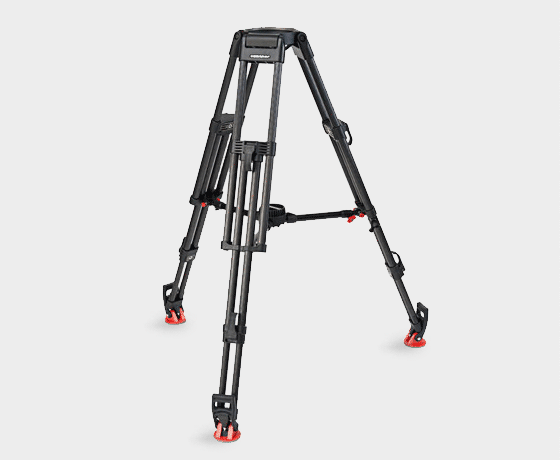

Flowtech 75
| Model No.: | V4150-0002 |
| Payload: | 20 kg (44 lbs) |
| Tripod bowl: | 75 mm |
| Material: | Carbon fiber |
| Weight: | 2.9 kg (6.4 lbs) (include spreader and feet = 3.8 kg (8.4 lbs) |
| Height range min to max: | Spreaderless mode 26 - 153 cm, ground spreader mode 41 - 158 cm |
| Extension: 2x: | 2x |
| Transport length: | 69 cm / 27.2 in |
Flowtech100
| Model No.: | V4160-0002 |
| Payload: | 30 kg (66 lbs) |
| Tripod bowl: | 100 mm |
| Material: | Carbon fiber |
| Weight: | 3.2 kg (7.1 lbs), including spreader and feet = 4.1 kg ( 8.8 lbs) |
| Height range min to max: | Spreaderless mode 26 - 153 cm (10.2 - 60.2 in), ground spreader mode 43 - 159 cm (16.9 - 62.6 in) |
| Transport length: | 69 cm |
| Extension: 2x: | 2x |

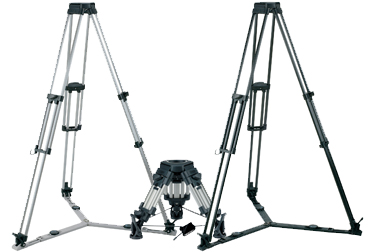

Bowl Pozi-Loc Tripod
75mm Bowl Pozi-Loc Tripod
Model:3819-3 Two-Stage Aluminium ENG
Hight Range with Floor Spreader : 41.6 to156.2 cm / 16.4 to 61.5 "
Weight :3.2Kg/7 lbs
Max.Load : 25Kg/55lbs
100mm Bowl Pozi-Loc Tripods
| Model | Height Range with Floor Spreader | Weight | Max. Load |
| 3821-3 Two-Stage Aluminium ENG | 41.6 to 156.2 cm / 16.4 to 61.5" | 3.1 kg / 6.8 lbs | 25 kg / 55 lbs |
| 3772-3 Two-Stage Carbon Fibre ENG | 41.6 to 156.2 cm / 16.4 to 61.5 " | 2.6 kg / 5.7 lbs | 25 kg / 55 lbs |
| 3883-3 Two-Stage Aluminium EFP | 52 to 157.1 cm / 20.5 to 61.9" | 5.8 kg / 12.8 lbs | 45 kg / 99 lbs |
| 3884-3 Two-Stage Carbon Fibre EFP | 52 to 157.1 cm / 20.5 to 61.9" | 5.5 kg / 12.1 lbs | 45 kg / 99 lbs |
| 3778-3 Baby Legs Two-Stage AluminiumENG | 23.7 to 51 cm / 9.3 to 20.1" | 2.1 kg / 4.6 lbs | 25 kg / 55 lbs |
150mm Bowl Pozi-Loc Tripods
| Model | Height Range with Floor Spreader | Weight | Max. Load |
| V4086-0001 Two-Stage Aluminium EFP | 52 to 157.1 cm / 20.5 to 61.9 " | 5.8 kg / 12.8 lbs | 55 kg / 121 lbs |
| 3881-3 Two-Stage Carbon Fibre EFP | 52 to 157.1 cm / 20.5 to 61.9 " | 5.5 kg / 12.1 lbs | 45 kg / 99 lbs |
| 3882-3 Baby Legs Two-Stage Aluminium EFP | 28 to 50 cm / 11 to 19.7 " | 4 kg / 8.8 lbs | 45 kg / 99 lbs |

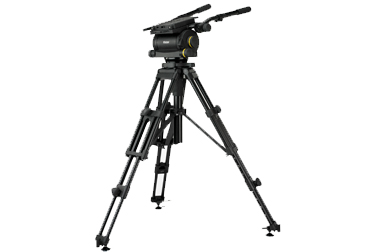

HDT Heavy Duty Tripods
| Model No.: | 3901-3 HDT-1 Single-Stage Tripod |
| Height Range: | 59 to 123 cm / 23.2 to 48.4 " |
| Transport Length: | 78 cm / 30.7 " |
| Weight: | 13.9 kg / 30.6 lbs |
| Max. Capacity | 140 kg / 308.6 lbs |
| Model No.: | 3902-3 HDT-2 Two-Stage Tripod |
| Height Range: | 51.1 to 146 cm / 20.1 to 57.5 " |
| Transport Length: | 73 cm / 28.7 " |
| Weight: | 15.6 kg / 34.4 lbs |
| Max. Capacity: | 120 kg / 264.5 lbs |
Oconnor
| MODEL | FLOWTECH® 100 |
| Type | 2-Stage Tripod |
| Material | Carbon Fiber |
| Capacity | 66 lbs. (30 kg) |
| Weight | 7.01 lbs (3.2 kg) tripod only |
| Maximum Height | 60.2 in. (153 cm) spreaderless mode |
| Minimum Height | 10.2 in. (26 cm) spreaderless mode |
| Top Casting | 3x 3/8" thread, 100mm bowl |
| Collapsed Length | 29.9 in. (76 cm) |
| Includes | Set of 3 Rubber feet, Attachment mount |

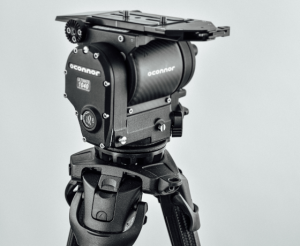

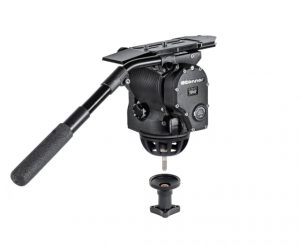

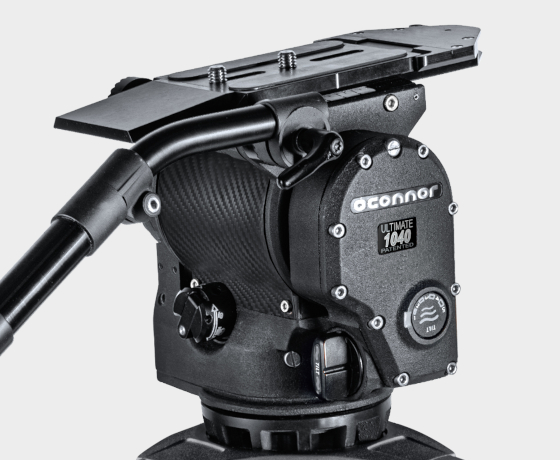

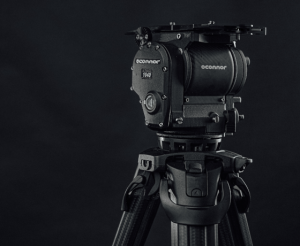

| Model | 1040 |
| Capacity | |
| @ 4 in. (102 mm) GoG @ 5 in. (127 mm) GoG @ 6 in. (152 mm) GoG @ 8 in. (203 mm) GoG |
52 lbs. (23.5 kg) 45 lbs. (20.4 kg) 40 lbs. (18.1 kg) 32 lbs. (14.5 kg) |
| Platform | Large Europlate Quick Release |
| Handle(s) | 30° |
| Bases | 100mm (Mitchell, 150mm, Quickfix and Ped mounts optional) |
| Tilt | +90° / -90° |
| Height | 6.2 in (15.8cm) |
| Width | 7.6 in. (19.3 cm) |
| Depth | 4.6 in. (11.7 cm) excluding quick release |
| Weight | 10.6 lbs (4.8 kg) includes quick release & plate and tiedown but excluding Pan Bar |
