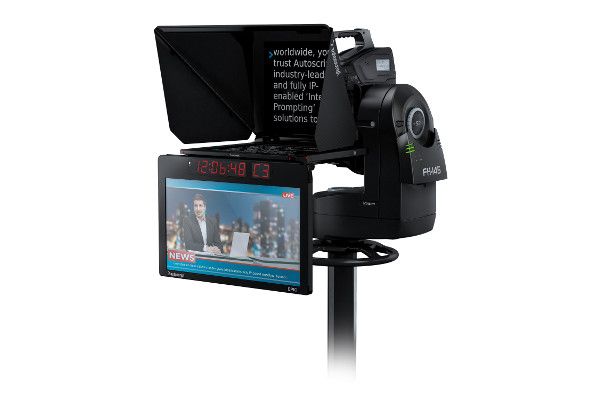

EPIC-IP17"

Prompt monitor size: 17"
Integrated talent monitor size: 17.3"
Integrated monitors only weight: 6.1 kg / 13.4 lb
On-camera package weight: 13.7 kg / 30.2 lb
Prompt monitor aspect ratio: 4.3
Prompt monitor brightness: 1500 nits
Prompt monitor resolution: 1280 x 1024 SXGA
Prompt monitor contrast: 1000:1
Prompt monitor dimensions: 440 x 360 x 41mm / 17.3 x 14.2 x 1.6”
Talent monitor aspect ratio: 16:9
Talent monitor brightness: 400 nits
Talent monitor resolution: 1920 x 1080 Script and feedback
inputs: LAN, 2x HD-SDI, 2x CVBS
Tally input: Opto sensor
Timecode Inputs: LTC, NTP (VITC, D-VITC optional)
Power consumption: 48W
Power input: 4-pin XLR, 12-16.8VDC
Outputs: Repeat Tally Output inc. 12V DC out
Viewing angle: H/V 170°/160
Mounting: On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket

EVO-IP17"

Size: 17"
Monitor only weight: 3.5 kg / 7.7 lb
On-camera package weight: 11 kg / 24.3 lb
Aspect Ratio: 4.3
Brightness: 1500 nits
Resolution: 1280 x 1024 SXGA
Contrast 1000:1
Script Inputs: LAN, 2x HD-SDI, 2x CVBS
Tally Input: Opto Sensor
Timecode Inputs: LTC, NTP (VITC, D-VITC optional)
Power consumption: 26W
Power Input: 4-pin XLR, 12-16.8VDC
Outputs: Repeat Tally Output inc. 12V DC Out
Viewing Angle: H/V 170 Degrees/160 Degrees
Dimensions: 440 x 360 x 41mm / 17.3 x 14.2 x 1.6"
Mounting: On-camera system with Intelligent Prompting backplate, carbon fibre hood and glass, rail and mounting bracket

WinPlus-IP News
Minimum system requirements

Operating System: Windows 7 or later 32 Bit and 64 Bit
OS supported Hard Drive: 1GB of free disk space
RAM: 4GB
Processor: i3 Graphics: Graphics card supporting OpenGL 3 for smooth preview/VGA prompting

Application

Connects automatically to all Intelligent Prompting devices on the connected IP network In-screen real time scroll preview Simple customisable user interface: resizable windows, colour selection, content tile position, content tile pin to sidebar, tabbed windows Script edits during live prompting Multi language support Word & RTF Import Graphical scroll control

Run Order

Options: add story, remove story, cloak story, drop story, scroll to prompter, track live story, print run order Available run order preview Drag and drop story

Story Editor

Options: font type, font size, font format, font colour, background colour, spell check, cut & paste Script matches prompt mode to indicate prompt output Follow prompter Font resize slider

Prompter preview

Super smooth scroll Options: timer, on-screen message, invert colours, blank screen Timer options: background clock, background timer Presenter preferences

Device management

Status: add manual, add discovered, monitoring Device grouping for firmware updates Remote program of scroll control function buttons Assign colours to function buttons Remote software and firmware updates

Compatibility

HC-IP desktop scroll control (not included) EVO-IP monitors, including EPIC-IP systems (not included, no XBox-IP required) XBox-IP scroll engine (not included, produces dual HD-SDI output) Instant script updates from NRCS Multiple rundowns Newsroom connectivity status User definable friendly name & newsroom connection type Closed Caption output function
