高動態範圍（HDR）是一種新興技術，與標準動態範圍（SDR）內容相比，其圖像質量明顯提高，並且帶寬增加最小。但是，儘管HDR繼續流行，但SDR需要保留-至少在不久的將來..

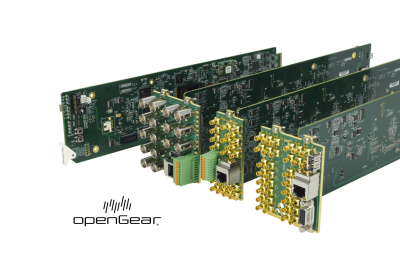

openGear系統由一個2RU，20插槽“卡籠”組成，該卡籠支持大容量冗餘電源，雙同步鎖相輸入以及與DashBoard遠程控制和監視軟件一起使用的千兆位以太網幀控制器。
幀控制器位於專用的第21個卡插槽中，該插槽保留20個可用插槽，並且不會降低Cobalt Digital屢獲殊榮的處理和分配卡所能達到的極限密度。

9000系列產品編號表示openGear模塊化卡。

2RU框架最多可容納20張openGear®卡 支持模擬，數字，視頻和音頻模塊的任意組合 基於千兆位以太網的幀控制器 SNMP監控選項 大多數卡可使用多個後I / O模塊 可移動的前門，方便維修風扇 框架標配有用於卡和電源的冷卻風扇 2個獨立的循環參考，分別連接到每個卡插槽 可選冗餘電源，可熱插拔以實現24/7操作 堅固耐用的360瓦電源，帶集成冷卻



9000 Series product numbers designate openGear modular cards.

►2RU frame houses up to 20 openGear® cards
►Supports any mix of analog, digital, video and audio modules
►Gigabit Ethernet-based frame controller
►SNMP monitoring and control option
►Multiple rear I/O modules are available for most cards
►Removable front door for easy fan servicing
►Frames come standard with cooling fans for cards and power supplies
►2 independent looping references with connection to each card slot
►Optional redundant power supply, hot-swappable for 24/7 operation
►Robust 360 watt power supply with integral cooling

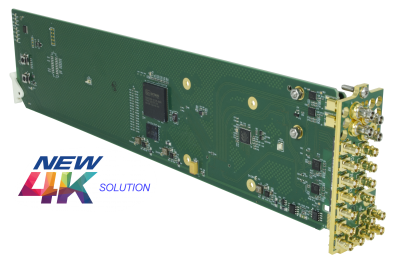

12G/6G/3G/HD/SD UHD Up/Down/Cross Converter/Frame Sync/Embed/De-Embed Audio Processor

12G/6G/3G/HD/SD-SDI Input/Outputs
(6) 75Ω inputs (max)
(8) 75Ω outputs (max)
SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
Return Loss:
> 15 dB up to 1.485 GHz
> 10 dB up to 3 GHz
> 7 dB up to 6 GHz
> 5 dB up to 12 GHz
Input Cable Length:
45m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ±10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

Frame Sync Audio/VIdeo Delay
Max offset: 20 frames
Latency (min): 1 frame

User Audio Delay Offset from Video
Bulk delay control: -33 msec to +3000 msec.
Per-channel delay controls: -800 msec to +800 msec

HDMI Output
HDMI 2.0 Output; type A standard connector

Frame Reference Input
(2) reference from frame bus. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”

Frame Loading (Max. recommended number of 9904 cards supported (by Frame Model)
  •OG3 Frame: (5) cards
  •HPF-9000 Frame: (5) cards
  •oGx Frame: (7) cards
Note: In all cases, it is recommended to leave a 1RU gap above the frame and set frame Network Controller Card to run the frame cooling fans at full (max.) speed.

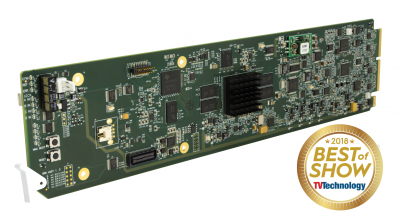

12G/6G/3G/HD/SD UHD Multiviewers
12G/6G/3G/HD/SD-SDI Inputs/Outputs
Video Inputs: (6) 75Ω inputs (max)
Outputs: (8) 75Ω Outputs (max)
SDI Formats Supported: SMPTE ST2082-1, ST2082-10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
Return Loss:
  >15 dB up to 1.485 GHz
  >10 dB up to 2.970 GHz
  >7 dB up to 6 GHz
  >5 dB up to 12 GHz
Input Cable Length:
  60m Belden 1694A cable at 11.88 Gbps
  120m Belden 1694A cable at 2.97 Gbps
  240m Belden 1694A cable at 1.485 Gbps
  400m Belden 1694A cable at 270 Mbps
Output Signal Level: 800 mV ± 10%
DC Offset: 0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps: < 45 ps
Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

HDMI Inputs (model 9971-MV6-4H-4K only)
(4) HDMI 2.0; type C-mini connector

HDMI Outputs
(2, max) HDMI 2.0 Output; type A standard connector


12G / 3G / HD / SD-SDI / ASI / MADI Routers
FEATURES

►Exclusive openGear card-based scalable router solution
►High-density design in openGear form offers compact 2RU solution
►Available in several matrix sizes with rear IO modules suited to your requirements
►Flexible control/monitoring options including Ethernet, JSON-based ReFLEX, SNMP, and third-party router protocols
►Fully embedded software/processing platform with all processing done locally on card
►Supports software upgrades allowing expanded functionality without removing cards and minimal disruption
►DashBoard™ remote control status monitoring and setup/control
