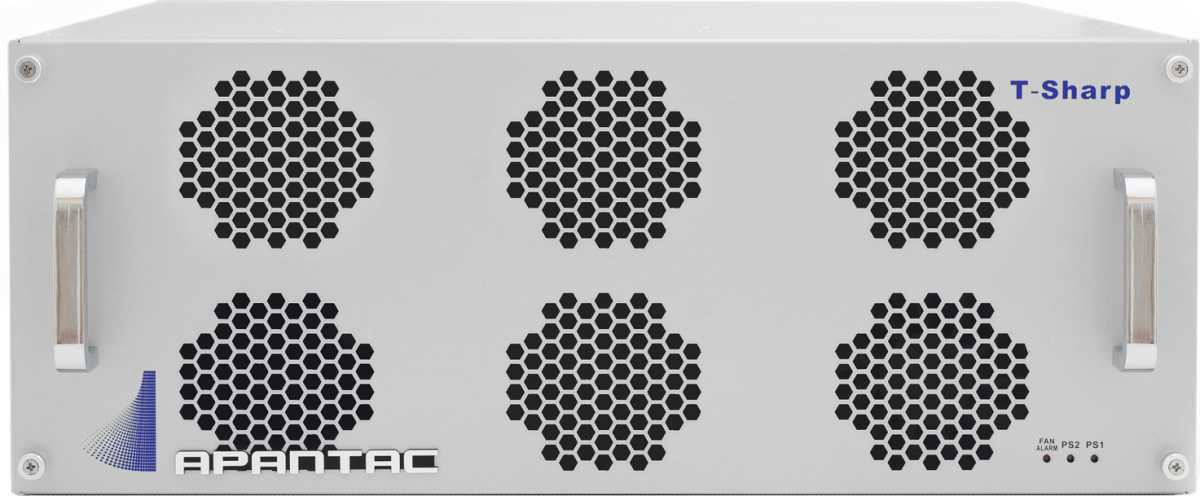

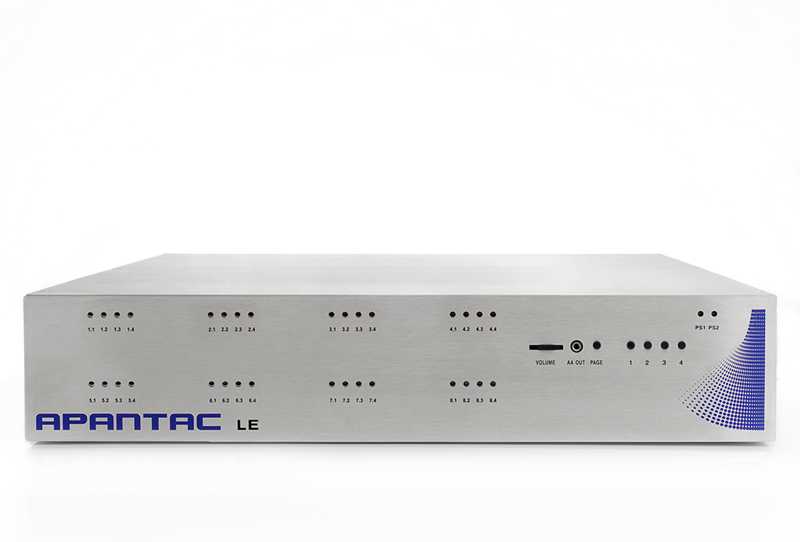

T# Specifications
VIDEO INPUTS
►HD BNC: 8 - 64 auto-detect 3G/HD/SD-SDI, CVBS
Up to 32 auto-detect 12G-SDI
►12G SDI: Signal SMPTE 2082
►Format: 3840x2160p 60Hz,3840x2160p 59.94Hz,3840x2160p 50Hz
►Audio:SMPTE 299M
►Equalization:70m
►3G-SDI: Signal SMPTE 424M-2006,Level A and B
►Formats: 1920x1080p 60 Hz,1920x1080p 59.94 Hz,1920x1080p 50Hz
►Audio:SMPTE 299M
►Equalization:120 m at 3G
►Return Loss:>15db up 1.5GHz,>10db from 1.5GHz to 3GHz
►Jitter:<0.3UI
►HD-SDI:Signal 4:2:2 SMPTE 292M-C (1.5Gbps)
►Formats:720p29.97 Hz, 720p25Hz,720p24Hz,
720p59.94Hz,729p50Hz, 1080i59.94Hz
1080i29.97Hz (PSF), 1080p29.97Hz
1080i50Hz, 1080i25 (PSF)
1080p25Hz, 1080p23.98Hz/24Hz
1080i50Hz
►Audio: SMPTE 299M
►Equalization: 140m at 1.5 Gbps (Belden 1698A)
►Return Loss: >15db up to 1.5 GHz
►Jitter: <0.2 UI
SD-SDI
►Signal: 4:2:2 SMPTE 259M-C (270 mbps)
SMPTE 2082
►Format: 525 and 625
►Audio: SMPTE 274M-1994
►Equalization: 400m at 270 Mbps (Belden 1694A)
►Return Loss: > 15db up to 270 MHz
►Jitter: < 0.2UI
COMPOSITE
►Signal: NTSC (SMPTE-170M)
PAL (ITU624-2)
►Signal Level: 1V nominal
►DC Offset: 0V, + - 0.1V
►Impedance: 75
►Return Loss: 40db up to 5MHz
HDMI
►Signal: HDMI/DVI (with converter cable)
►Max Resolution: 1920x1080/1920x1200 @ 60Hz
►Audio: 4 channels of embedded audio
►Connector: 4 x HDMI Type A female
IP: ASI/H.264
►Signal ASI/H.264
►Compliant to ISO/IEC 13818-1 MPEG-2 Transport Stream Specification
►Demultiplexing incoming SPTS/MPTS MPEG2/H.264 decode
►MPEG2 MP@HL, resolution up to 1080P/1080i@60Hz
►Supports both 50 and 60Hz
►Connectors 4 HDBNC (2 in 2 out),
►1 RJ45
MULTIVIEWER OUTPUTS
►HDMI: HDMI 1.4: 4 or 8,HDMI 2.0: 1 or 2
►Connector: HDMI Type A, HDMI Extender out (RJ45),HDBaseT (RJ45)
►Cable Reach: 15 ft for HDMI, 35 ft RJ45 with passive receiver
►Signal Path: 8/10 bit output
Format
►1080P, supports 50/60 and 59.94 Hz
►3840x2160, supports 50/60 and 59.94Hz
12G SDI
►HDMI 1.4: 4 or 8
►HDMI 2.0: 1 or 2
3G/HD-SDI
►4 or 8
Signal
►12G-SDI SMPTE 2082
3G/HD-SDI SMPTE 424M and 292M
Return Loss
►>15db up 1.5GHz
►>10db from 1.5GHz to 3G
Jitter
►3G: <0.3 UI, 1.5 <0.21 UI
LTC Input
Signal
►SMPTE 12M-1995 (EBU3259-E Level
►500 mVp-p to 10 Vp-p
►Impedance > 10k ohm
►Refresh Rate 50/59.94 Hz
COMMUNICATION
►Ethernet RS-45 port
►Signal 10/100/1000 Base-T
SERIAL PORT
►Signal RS-232
►Connector RJ45
ANALOG AUDIO OUT
►Impedance < 600 ohm
►Level +24 dbu maximum
►Connector PheonixVIDEO PROCESSING PERFORMANCE
Signal Path
►8 bit Ycbcr to 24 bit RGB
Processing Delay
►1 frame in genlock mode
►1-2 frame in non-genlock mode
REFERENCE
Extender
►BB
Connector
►HD BNC
